Patriot3 ARC
ARC Logo
  • Single Ramp System

  • Ramp or Stairway Modes

  • Light/Medium Weight Vehicles

The next generation in Elevated Tactics technology, the ARC, is a single ramp system that can operate as a standard deck surface or as a stairway. The unique capability to transform into a stairway allows users to ascend and descend the ramp at steeper angles with ease while maintaining sure footing. Its design offers unprecedented capability and adaptability for medium weight vehicles.

!
Widget Didn’t Load
Check your internet and refresh this page.
If that doesn’t work, contact us.

ADVANCED
ADAPTABILITY

The ARC provides advanced assault and rescue capabilities to the host vehicle, without hindering any of the vehicle's features including access to the vehicle's roof hatch/turret. The ARC comes standard with Side Deployment Rails (SDR) and the Multi-Angle Extension Ramp (MER). The ramp can reach its maximum height in about 12 seconds.

Turret Access Panel

FEATURES:

arc drawing

Stair Mode

Ramp Stowed

*ARC System
on Achleitner HMV Survivor 1 shown

arc drawing
arc drawing

Ramp Mode

1
1
2
2
2
3
3
3
4
4
4
5
5
6
6
6
1

Articulating Stairway/Ramp

The ramp deck surface of the ARC can be converted into a stairway from the down position by simply repositioning high strength pivot pins. In ramp mode and stairway mode, the ramp can achieve a maximum incline angle of 30 degrees and 42 degrees, respectively.

ARC Bearcat
2

Rear Access Ladders

Two (2) ladders come standard with each ramp system. They are mounted to the rear of the ARC via stainless steel pins, allowing access to the ramp deck surface from the ground. The ladders can be removed easily if required.

Rear Access Ladders
3

Heavy Duty Construction

The ARC is built primarily from aircraft grade aluminum, high strength steel and stainless steel fasteners. All aluminum components are anodized and all mild steel components are powder coated for superior corrosion and weathering resistance. The ARC ramp surface is constructed from slip resistant GripStrut Safety Grating that exceeds US Federal Spec RRG-1602A requirements.

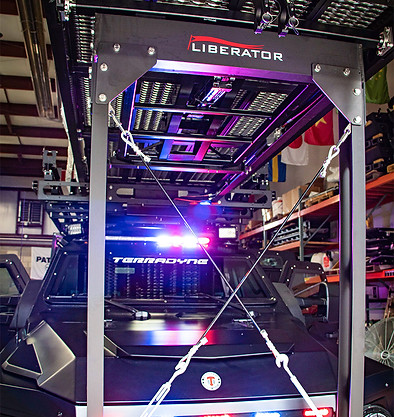

Liberator
4

Side Deployment Rails

Side Deployment Rails (SDR) are linear rails that mount to both sides of the ramp providing side deployment of Tactical Ladders. Each SDR system comes with two sliding ladder carriages. If desired, both carriages can be used on the same rail and additional carriages achieve multi-ladder deployment.

Patriot3 SDR
5

Safety Railing System

The Safety Railing System is a standard feature on all available ETS ramps. The railing is designed to reduce user risk during operations. All safety railings are stainless steel with a sand blasted textured finish for enhanced grip qualities. The railings fold down or can be quickly removed to reduce overall system height for transport and low clearance needs.

ETS SRS
6

Multi-Angle Extension Ramp (MER)

The Multi-Angle Extension Ramp (MER) comes standard with the ARC and provides up to 48" of linear deck surface to the end of the ramp, offering enhanced breaching capability. In addition, the MER can be pivoted to provide a semi-level surface throughout the entire motion of the ARC ramp.

Patriot3 Multi Angle Extension Ramp
ETS Accessories
